How to pass variables or arguments to another project

Help Studio
, ,
1

I have argument/variable in project X and I want to pass it to project Y
Can I do that using UiPath ?

Thanks

2

Hi,

First set argument in Main.xaml of Callee project. (Let’s say in_argAnotherProcess)

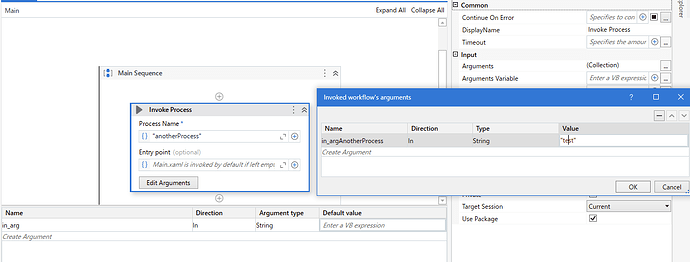

Then In Caller project, use InvokeProcess with argument as the following image.

image1281×487 46.4 KB

Regards,

3

Hi @mironb

You can able to pass the arguments within the two xaml’s in the Same Project by using Invoke workflow activity.
Cannot able to access out of the Project/Process

Hope it helps!!

4

You can use the arguments pane at the bottom of the screen and when invoked into another workflow you can store variables in the arguments

5

@Yoichi
It can be used when project X get the argument as a dynamic one ?
And I didn’t understand how to implement the name of the First project name in the “Invoke process” of the 2nd project - just type the name in quotation marks ?

6

@pravallikapaluri
So if I understood you correctly, it’s not possible what I want to do, right?

7

Yes @mironb

You got it right?

8

@aquinn
I didn’t understand exactly what you meant

9

It is explained better in the comment by @Yoichi

10

Yes. Can you try the following sample?

Callee Task

image1118×665 38.9 KB

Then publish and have it enable to run (If necessary, create process in Orchestrator)

Caller Task

image1277×661 51 KB

If run, we can pass strMessage to Callee process (and show messagebox)

Samples:

calleeTask.zip (51.1 KB)

callerTask.zip (49.6 KB)

regards,

11

@Yoichi

When I tried to publish the callee :

12

Hi,

The above sample is for StudioX
Can you try the following sample for Studio?

CalleeProcess.zip (2.2 KB)

CallerProcess.zip (2.2 KB)

Regards,

13

Hi @Yoichi
I Published the “CalleeProcess”
When I am trying to run the “CallerProcess” I got this message
