Issue with "For Each UI Element" Not Navigating to Next Page

Help Studio
, ,
1

Hi Team,

I am using the For Each UI Element activity to extract table data row by row. Each page contains 100 lines of data, and after processing one page, the bot should click “Next” to continue. However, the bot completes the run without navigating to the next page.

I have tried various element indication and anchoring methods, but the issue persists the bot stops after processing only the first page.

Thanks in advance.

2

@jai_kumar2

Are you using Table extraction method only??

For extracting details from a structured input spreaded across multiple page - Use Table extraction

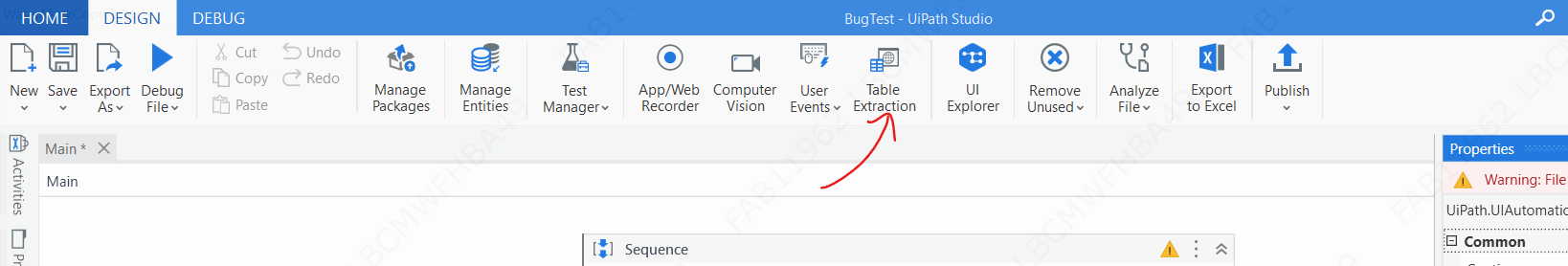

The image shows a screenshot of the UiPath Studio interface with the "Table Extraction" tool highlighted in the Design tab. (Captioned by AI)
The image shows a screenshot of the UiPath Studio interface with the "Table Extraction" tool highlighted in the Design tab. (Captioned by AI)1638×278 47.3 KB

3

Hi @sharazkm32,

Yes, I tried on both Table Extraction and Extract Data Table activities, but the next page feature isn’t working in either of them.

4

Could you please share a screenshot

Also please confirm that you are selecting the next page option while using data table extraction method

5

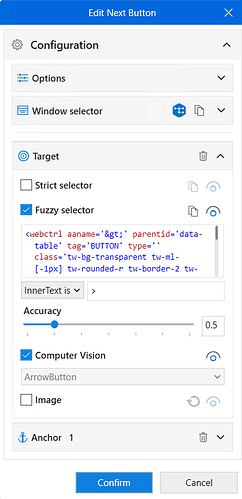

A configuration interface for editing the next button with various selector options and accuracy settings is displayed. (Captioned by AI)
A configuration interface for editing the next button with various selector options and accuracy settings is displayed. (Captioned by AI)391×807 40.7 KB


6

@jai_kumar2,

Check the Next page button selectors. Also you can test the extraction while designing

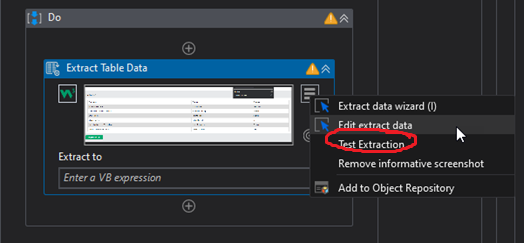

A user is navigating an "Extract Table Data" configuration window in a software interface and has highlighted "Test Extraction" in the dropdown menu. (Captioned by AI)
A user is navigating an "Extract Table Data" configuration window in a software interface and has highlighted "Test Extraction" in the dropdown menu. (Captioned by AI)524×243 31.1 KB

7

Hi @Jay_Kumar
You can use this following methods

Check for the “Next” Button: Use “Element Exists” in UiPath to find the “Next” button. If it’s False, adjust the selector using UI Explorer. If True, try different click methods.

  1. Manual Table Extraction: If auto-click isn’t working, manually use “Extract Data Table” to save the data in a DataTable. Check for the “Next” button again.If found, click Next, wait, and repeat.

  2. Fixing Click Issues: Try “Simulate Click” or send Window Messages if clicking fails. Scroll to the button if needed.

  3. Loop Until Last Page: Set up a loop like this: While (Next Button Exists = True)
    Extract → Save → Click “Next” → Delay → Repeat.

Let me know if it works or not
