i am creating app to support solution architects.
my requirement is to pass variables from app to studio variables.

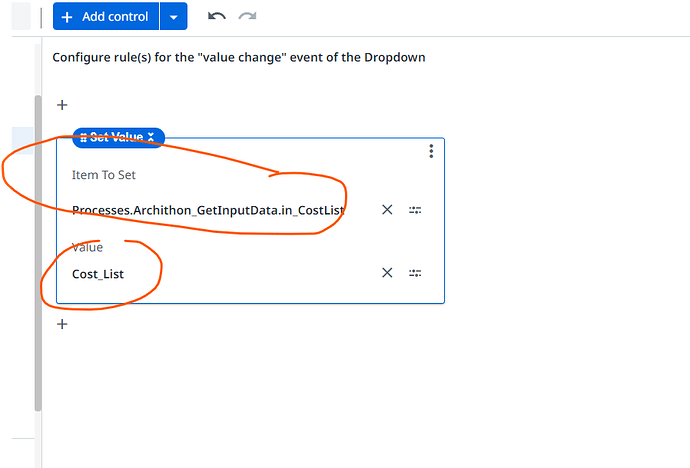

for same i haev created variables in app and assigning to studio variables using set values.i cant find bind value option in properties of any control (ex. drop down control) like we used to have in previous apps before migrating to vb.
after passing value to studio i need to start agent in bpmn model and need to pass same variables in agent.
how can i achieve this?
so help me in below points.

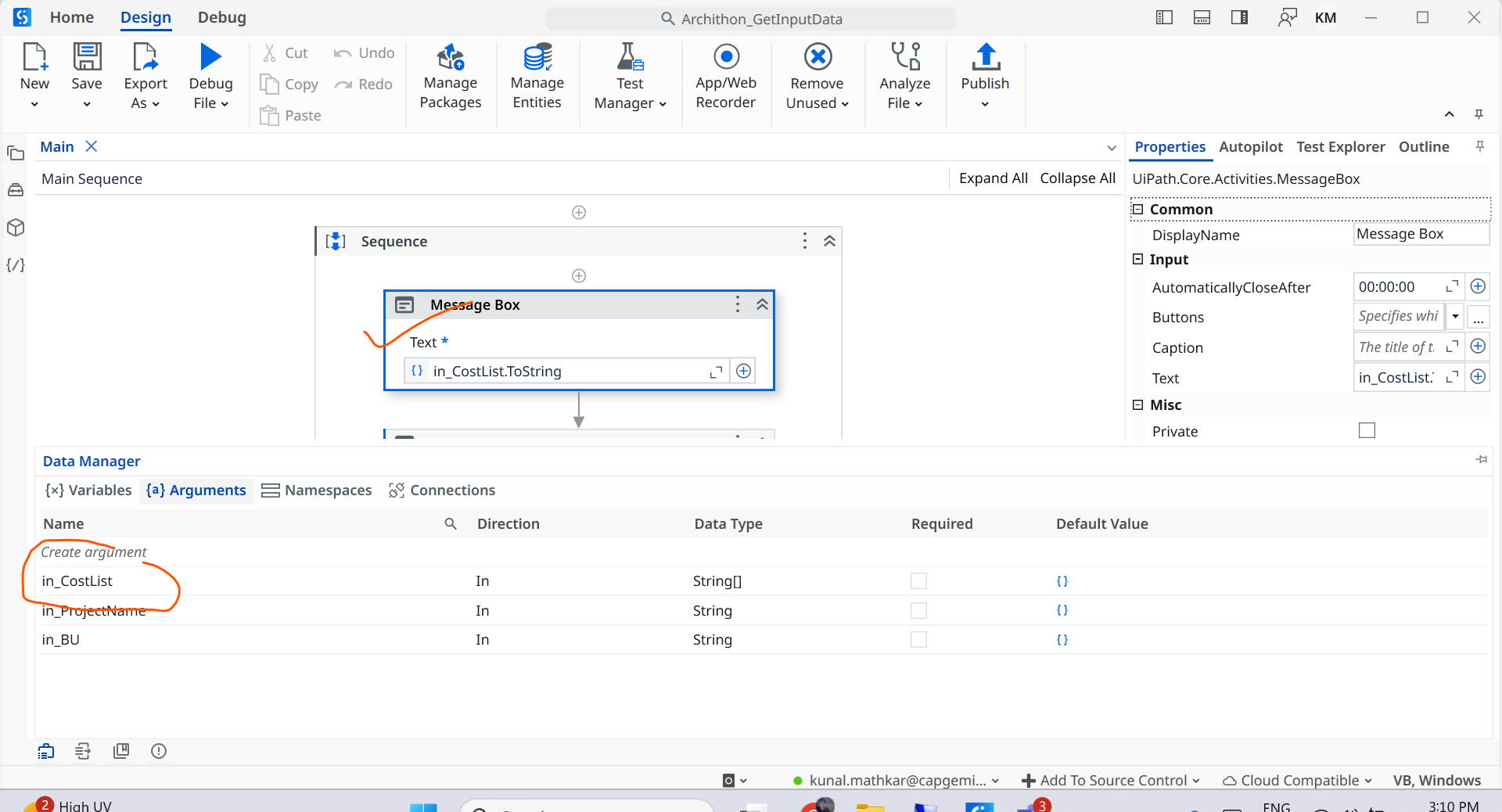

cehck ss and tell me where i went wrong to assign variabels, because when i am running app after entring data , when it triggers process of upath , in message box it showing empty.
chk below ss -

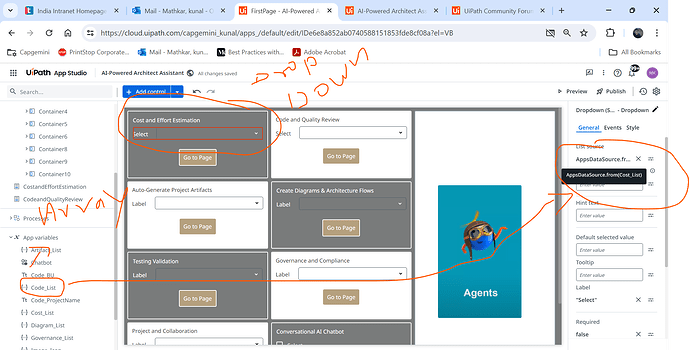

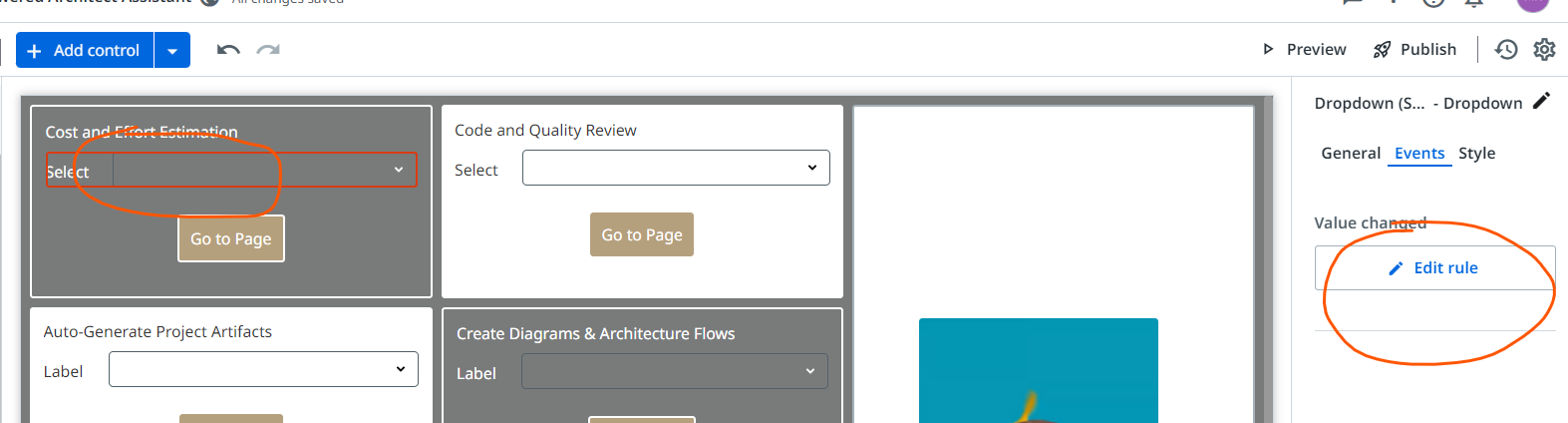

forst of all i cant see value binding option in properties.

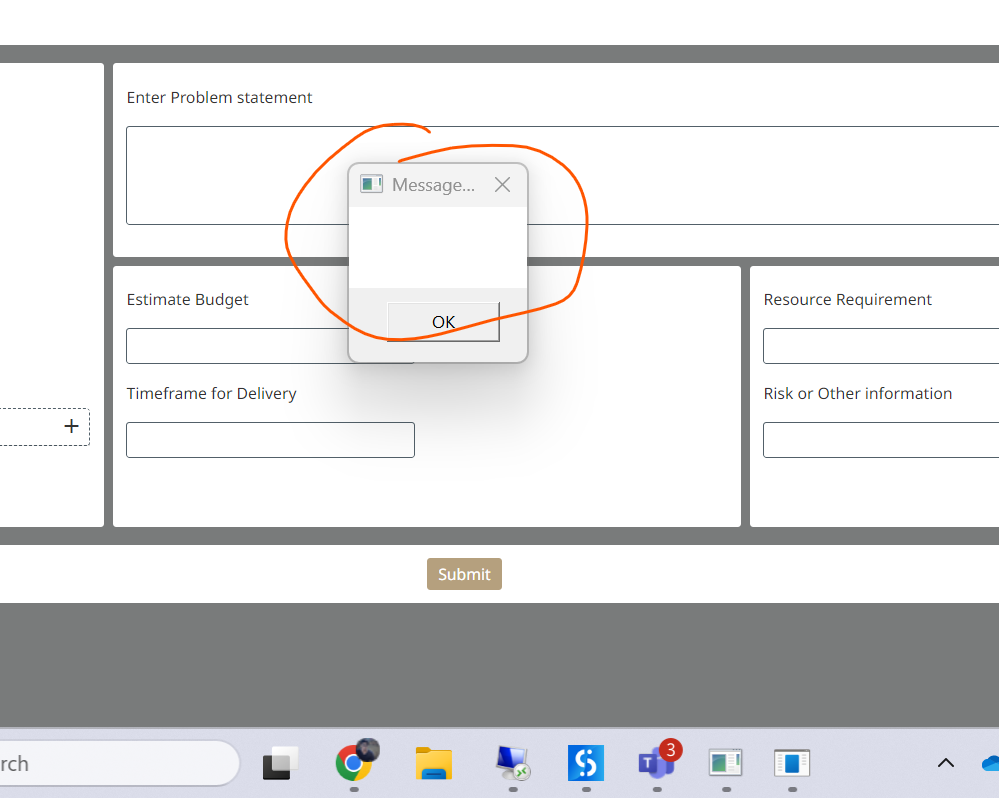

but message box showing empty , it should show whatever value is selected in dropdown right.check below ss - getting other two fields as well those are also empty.
To pass the UiPath ‘app’ variable to the UiPath studio process, you must assign the value of the ‘app’ variable to the input argument of the process using the Start Process rule within the UiPath app edit rule.
.

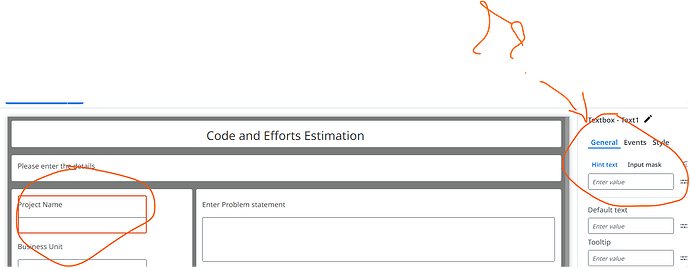

When you pass the ‘app’ variable to the Hint Text property of a text box, it is only displayed as a placeholder (i.e., hint) in the input field. However, this does not set the actual input value of the text box. At runtime, whatever the user enters into the text box is what gets passed to the Studio process.
If you want the text box to have the app variable as its default input value (i.e., pre-filled when the form loads), you should pass the app variable to the Default Value property of the text box instead.
checked as you suggetsed as well, but still value is empty.

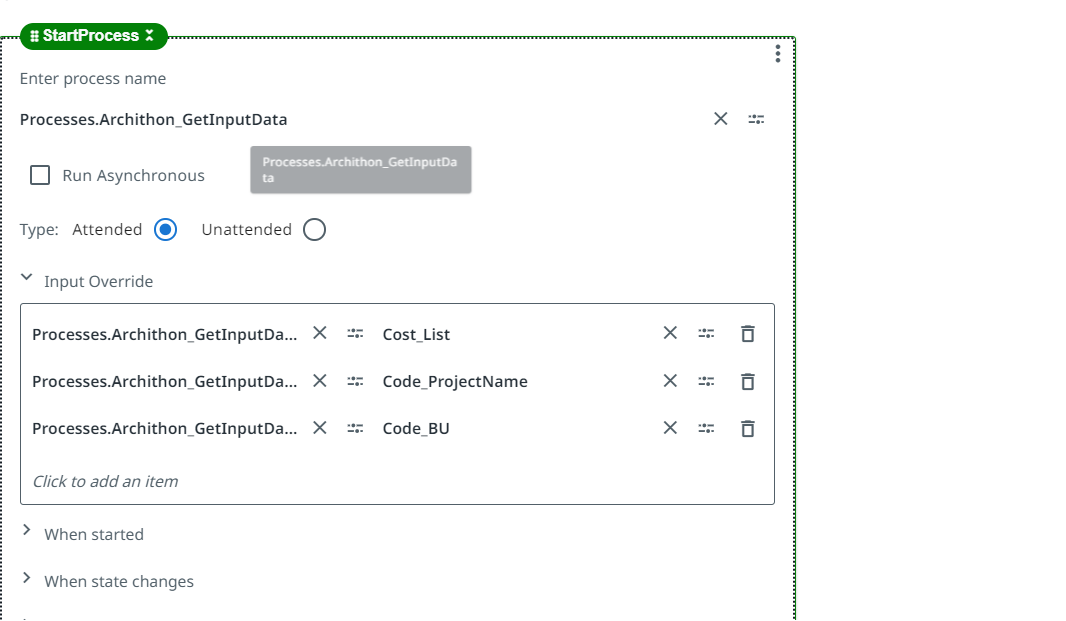

now i am only passing app variable to default value and in start process i am assigning as i have showed in previous image.
what is the exact error?what i am missing?
where i am doing mistake?
i have on equestion.
i need to strat bpmn model using UiPath workflow. is it possibe?
and if able to do it i need to pass the varibale now i got from app s to studio and now to agent after starting bpmn model process agent.
I believe you figured out set value to variable for process needs to be done in start process directly..but binding should be done with pagename.controlname.value ..this would give the value selected in dropdown
The type needs to be string if you need only selected value…if list ideally you are passing all values
To start the process have a start job activity which can trigger it.(make sure you system package is latest)

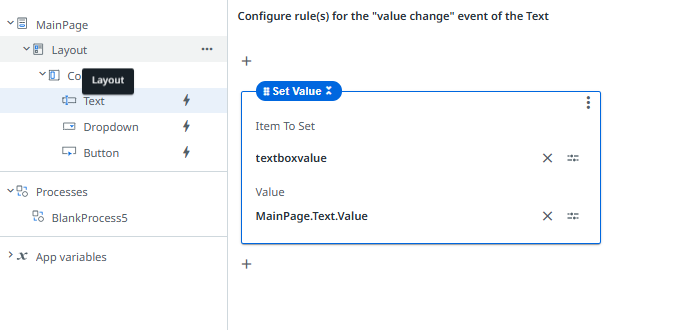

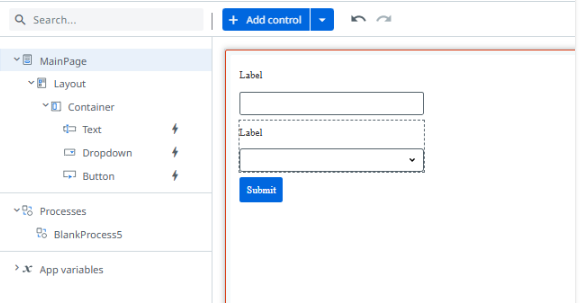

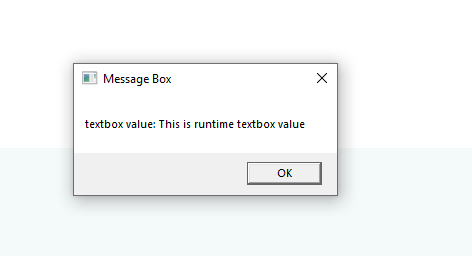

a small sample on how to get value from control
linking to process is from the start process but use the above format to get the control selected value
