No xaml files available when extracting from the nupkg package

Help Orchestrator
,
1

Hi People,

I’m unable to find the xaml files of the project in the folder.

Following the steps i followed when facing this issue:

  1. Publish the latest update of the project in the orchestrator and from machine 1.
  2. Login to orchestrator from machine 2
  3. Download the latest published version from the package.
  4. Change the extension of the downloaded file from .nupkg to .zip
  5. Extract the file to the local in machine 2
  6. When i opened the project folder, i do not see any xaml files in any of the folders within.

Attached is the screenshot of the project folder when extracted from the downloaded file:

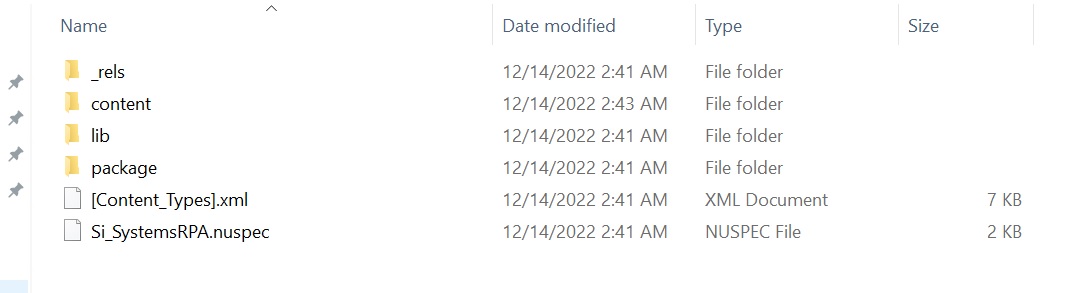

Project Root Folder:

xaml issue2
xaml issue21090×293 39.6 KB

In the ‘content’ folder;

xaml issue
xaml issue1035×400 65.4 KB

I have seen xaml files when extracting via other packages in the content folder, however for this particular project, i do not see any of the xaml files in it.

Could someone please help me out in figuring out the issue?

3

HI @Karthikeyan_CS

And You extracted with?

Try extracting it with 7zip
https://www.7-zip.org/

Regards
Sudharsan

4

@Karthikeyan_CS,

Check on the “lib” folder.

5

i have searched the entire folder using *.xaml

No results for xaml files from the root folder.

6

tried that too… 7zip is able to extract from the nupkg file itself… However no xaml file within any folders. Same issue occurring.

8

@Karthikeyan_CS Hi
Can you confirm the files in the package explorer before downloading them from the orchestrator?

9

Check manually once again @Karthikeyan_CS

Goto lib-> net45 and see again

Regards
Sudharsan

10

image1570×120 14.7 KB

11

The Explore package button is disabled for this.

12

no luck bro…
Lib folder contains only ‘net6.0-windows7.0’ folder. Within this folder there is a bunch of .dll files

13

confirm the permission

15

Check this solution Not able to see the xaml file from the extracted .nupkg file - #6 by marian.platonov as I think you didn’t include the Source files while publishing the package to Orchestrator.

Include Sources - select this option to package all .xaml sources within the published package, including workflows that were previously made private. For Windows - Legacy libraries, the files are saved in the generated assembly file and in the lib\net45 folder in the .nupkg file. For Windows and cross-platform libraries and processes, the files are saved in the content folder in the .nupkg file.

image917×705 60.6 KB

2 Likes
16

Have you check your publish options like if include source code is not checked then it will not shown you source files

image821×638 21.8 KB
