I need to extract QR code from PDF

Help Activities
, ,
1

I need to extract the QR code from the invoice and extract the details from that extract the details from this above mentioned scenario

2

Please explain the issue correctly…

3

i want to decrypt the qr code in my input pdf invoices and i need to extract that details

4

Extract PDF Pages: First extract the QR code from your PDF file.
Identify and Decode QR Code: After extracting the images or pages containing the QR code, we’ll decode the information embedded in it.

This can also be done using DU (Document Understanding)

If u required code please let me know

5

Welcome to the forum @Melbin_Antu2 :party_popper:

Regarding your usecase,

  1. Use Extract Images From PDF activity to get all the images from the PDF.
    Activities - Extract Images From PDF

  2. Now install UiPathTeam.Barcode package.

    The image shows the "Manage Packages" window in UiPath Studio, displaying installed project dependencies, including one for barcode activities. (Captioned by AI)
    The image shows the "Manage Packages" window in UiPath Studio, displaying installed project dependencies, including one for barcode activities. (Captioned by AI)1575Ă—875 140 KB

  3. Use activity Decode Image from the package

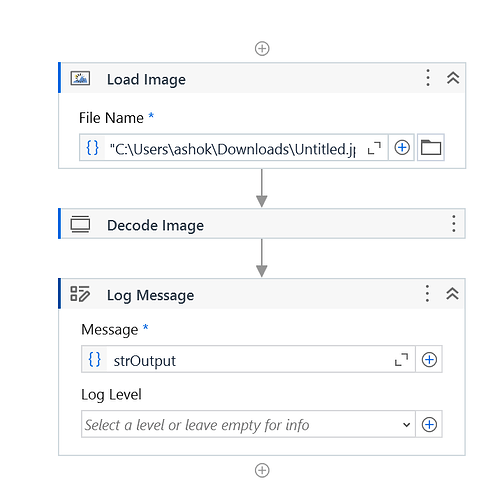

    This image shows a sequence of steps in an automation workflow, including loading an image, decoding the image, and logging a message with the output. (Captioned by AI)
    This image shows a sequence of steps in an automation workflow, including loading an image, decoding the image, and logging a message with the output. (Captioned by AI)719Ă—716 16.8 KB

  4. Here is how to use it. Sample code:
    CICD_Demo.zip (1.5 MB)

Output:

A software debugging output window shows the successful execution of the "CICD_Demo" with no errors or warnings. (Captioned by AI)
A software debugging output window shows the successful execution of the "CICD_Demo" with no errors or warnings. (Captioned by AI)590Ă—307 18.2 KB

6

Hi @Melbin_Antu2 ,
Adding to ashok , incase if you still have any doubts, please feel free to watch below video to get an idea how to decode QR.

Happy learning and Happy Automation!

7

Is there any library other than UiPath.teams.barcode since it’s dependencies outdated

8

@BerlianaZain

Try this solution if not tried already.

9

Hi! Thank you for the response, I am using invoke code using ZXing library and it works just fine.

10

Hi @ashokkarale

I have already tried this UiPathTeams.barcode but for current UiPath.uiautomation.activites version i.e. more than 24 is not working as it shows error while running through assistant so could you please help me to achive that ?
I have a image of Qr code and i need to get that decode.

11

@BerlianaZain could you please help me to do so ? as i am stuck in the same issue

12

For Extraction, Check out UiPath.PDF.Activities.

After Installing the package, Use Read PDF With OCR Activity. Pick an OCR(Preferably Tesseract OCR if you want reliability)

Assign the output to a variable(In this case the entire page your QR Code is located)

Use .Contains() if youre extracting multiple pages.

Finally use Regex to extract exactly what youre looking for. (System.Text.RegularExpressions.Regex.Match(inputText, pattern).Value)

13

Extracting QR codes from PDFs can be tricky since they are often embedded as images rather than text elements.
If you are looking for a straightforward way to handle this without building a complex OCR workflow in UiPath, you could try using a dedicated PDF extraction tool. There are several lightweight web-based utilities that specialize in pulling images or specific data from PDF files. Once you have the QR code image extracted, passing it through a standard barcode reader activity becomes much more reliable.
Another option is to use the “Export PDF Images” activity in UiPath first, and then point your QR scanner at the resulting folder. That usually saves a lot of headache compared to trying to read the QR code directly from the document page.
