How to fetch the value in Studio from asset of type Secret

Help Studio
, ,
1

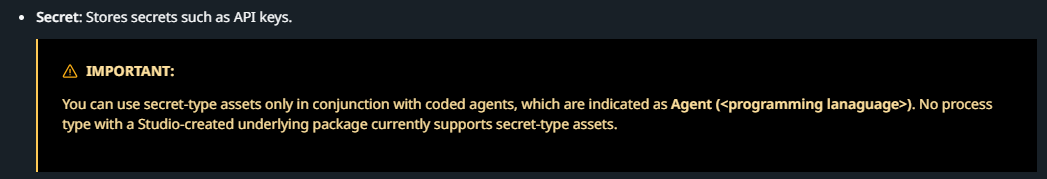

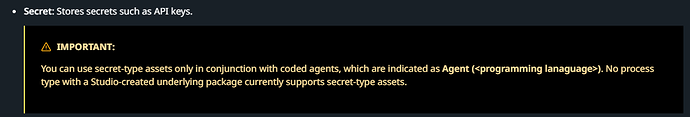

I am seeing a new option as secret as asset type. I believe it is used for storing API keys, how can i fetch the valye into Studio workflow?

I have tried using get credential and fetch value from password field bit its throwing error when i am using the activity : get Credential. Please suggest ??

3

Hi @Raj_Kumar7

You should be able to fetch the same using get credential activity.

Can you share what errro you are getting?

Have you verified if you are using the correct asset name?

4

Let’s assume in a modern folder named Shared we have a Credential Asset named Credentials_values. This credential asset holds credentials for different robots.

The image shows the UiPath Orchestrator interface with a page for editing an asset named "Credentials_values," where credentials and robot asset values can be managed. (Captioned by AI)
The image shows the UiPath Orchestrator interface with a page for editing an asset named "Credentials_values," where credentials and robot asset values can be managed. (Captioned by AI)2031×674 99.1 KB

In the Studio sequence in the Get Credential activity provide the Asset Name and the OrchestratorFoldePath values from Orchestrator, and in the output, create two new variables that will hold the Password and Username values.
The image shows UiPath's Get Credential activity setup, where credentials are retrieved with the specified asset name and orchestrator folder path, and the username and password are saved into designated variables. (Captioned by AI)
The image shows UiPath's Get Credential activity setup, where credentials are retrieved with the specified asset name and orchestrator folder path, and the username and password are saved into designated variables. (Captioned by AI)1743×704 198 KB

In order to transform the SecuredString value to a String you can use an Assign activity that will create a new String value.

new System.Net.NetworkCredential("",CredentialPassword).Password

This image shows a code snippet in an expression editor window assigning a password using System.Net.NetworkCredential. (Captioned by AI)
This image shows a code snippet in an expression editor window assigning a password using System.Net.NetworkCredential. (Captioned by AI)646×267 25.2 KB

The image shows a software interface with an expression editor where a network credential password is being assigned in a string variable. (Captioned by AI)
The image shows a software interface with an expression editor where a network credential password is being assigned in a string variable. (Captioned by AI)646×267 25.2 KB

Results from the Output panel for the Log Message activity:

Log Message activity Message value:

"Username: " + CredentialsUsername + "\nCredential Password: " + CredentialPasswordToText


1 Like
5

Hi @sonaliaggarwal47

I was receieving the below error, Please advise

Get Credential: Error converting value “Secret” to type ‘UiPath.Core.Activities.AssetValueType’. Path ‘ValueType’, line 1, position 188.
