Hi all,
I am trying to import next link https://wiki.easyvista.com/xwiki/bin/download/Documentation/Integration/WebService%20REST/WebHome/Swagger%20file.json?rev=1.1 into a Service, from the library design view and is not working:

The image shows a "Service Editor" window with options to load and select API endpoints from a given URL, displaying categories "Actions" and "Requests_and_Incidents" with their respective endpoints and HTTP methods. (Captioned by AI)
The image shows a "Service Editor" window with options to load and select API endpoints from a given URL, displaying categories "Actions" and "Requests_and_Incidents" with their respective endpoints and HTTP methods. (Captioned by AI)597×498 13.8 KB

I have tried to find a solution browing the forum, but seems to be an old issue that should be fixed. Does anybody how to solve this?
Just in case, I’m using the latets community version to test this kind of functionalities.
Thanks in advance!

1 Like
3

Hi @Alvaro_RS,

When you look at your Output Panel, do you see any error messages (stack trace)? Can you share the stack trace error please?

It may look similar to this:
Service operations are not found; An explicit conversion exists (are you missing a cast?) - Feedback / Studio - UiPath Community Forum

Thanks

4

Hi @kristopherk,

Please, finde next the information displayed in the Output Panel:

The image shows a software interface with error messages related to invalid expression terms and missing service operations in the Service Editor window. (Captioned by AI)
The image shows a software interface with error messages related to invalid expression terms and missing service operations in the Service Editor window. (Captioned by AI)1197×401 22 KB

Indeed, the same happens when just one operation is selected. So I don’t really know why it can recognise every method but none can be imported or created automatically.

Regards

5

Hi @Alvaro_RS,

Is your project using C# or VB.NET?
Can you try the other language option in a new project and see if that makes a difference?

Thanks

6

Hi,

I have created also a C# library to try and it displays exactly the same error.

Regards

7

Hi @Alvaro_RS,

It looks like there might be an issue processing responses that are defined as “” (blank)

image580×324 6.57 KB

A snippet of an OpenAPI specification document outlining the GET endpoint for viewing domains associated with an employee, including different response codes and corresponding descriptions. (Captioned by AI)
A snippet of an OpenAPI specification document outlining the GET endpoint for viewing domains associated with an employee, including different response codes and corresponding descriptions. (Captioned by AI)658×341 7.26 KB

image608×271 5.75 KB

image480×273 5.28 KB

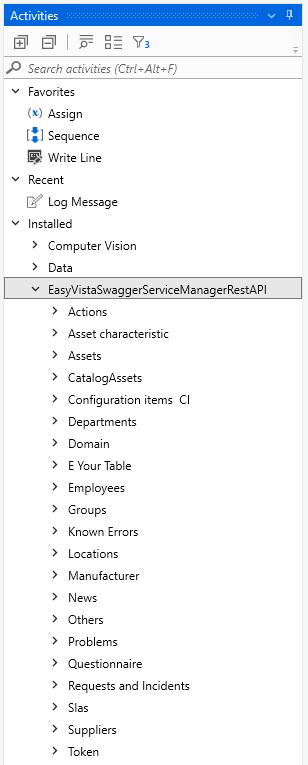

Eliminating these responses allows the JSON to be processed successfully.

image308×765 12.8 KB

For now, you could try to change those responses from “” (blank) to “default”, but there is a bug with the service definition based on the OpenAPi Specification. I believe “default” is the catch-all that should be used in a service definition vs “” (blank)
OpenAPI Specification - Version 3.1.0 | Swagger

Can you ask EasyVista to update their service definition to use “default” instead of “” (blank) for default responses please?

It should look like this:

image491×307 5.84 KB

Thanks

8

Hi @kristopherk,

I’ve done what you suggested and it works! Indeed, it makes some sense and I should reviewed deeper.

Thanks for the support!
