Clarify Parallel Activity

[subramaniancts (subramanian)]

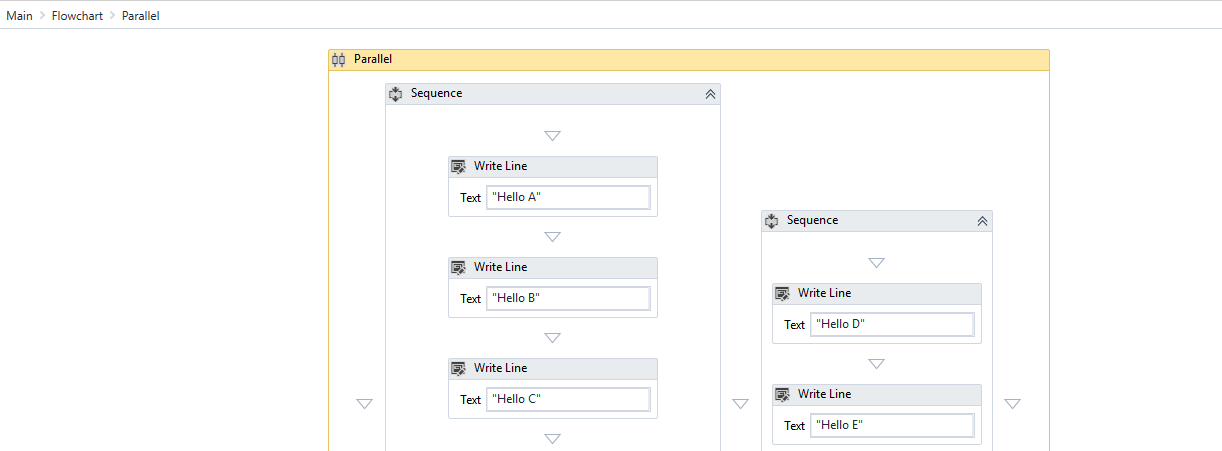

I have created two sequence activity inside the parallel activity but the sequence activity is executed one by one instead of Parallel. My requirement is to invoke two activities in parallel. Can you please explain how to achieve this?

[AkshaySandhu (AkshaySingh Sandhu)]

hello @subramaniancts can you post image or upload your xaml… it will help us better to understand your issue.

[subramaniancts (subramanian)]

[J0ska]

Have a look here:-

Message Box or Pop Up While Running Sequence

Hi, there is a workaround: You could use “Parallel” activity. The trick is that you should put each parallel branch into a separate workflow like indicated in image below: [image] In your case it will be "flow of getting all the data " in one workflow and message box in the second. Each workflow should be started with Isolated = YES to allow true parallel execution. [image] Condition property of the Parallel activity should be set to TRUE to finish the whole activity once the first workfl…

Cheers

[srishsai (Srish Aurangabadkar)]

Hi @Subramaniancts,

we need to use separate workflows and check the isolated property (checked)
also set the condition to true, only then it will execute parallely.

I hope this helps

Regards
Srish

[Vivek_Arunagiri]

Hi @subramaniancts,

Welcome to the Community.

Just give one second delay after each activty and try. It works.

[subramaniancts (subramanian)]

Thanks. Its help. In my scenario the first workflow output is the input for 2 and 3rd workflow, so i have to execute first workflow and once it is completed then i can execute the workflow 2 and 3 parallely. Can you please guide me on this?

[J0ska]

Hi,
Just follow description in my previous post.

The only difference might be that Condition property of the Parallel activity should be set to FALSE to wait until both WF2 and WF3 finish.

Cheers
