Where we have to give Form data in HTTP Request activity

kalyanDev · May 4, 2020, 9:55am

i need to pass this information Http Request activity so in this activity thease information where i have to give i have tried in passing as parameter but it is not working

GBK · May 4, 2020, 10:32am

@kalyanDev - pls test api in postman with respective input params - just to confirm the input params are correct.

kalyanDev · May 4, 2020, 10:34am

in postman it is working . @GBK

GBK · May 4, 2020, 10:39am

@kalyanDev - can you share the screenshot of http request with properties?

kalyanDev · May 4, 2020, 10:57am

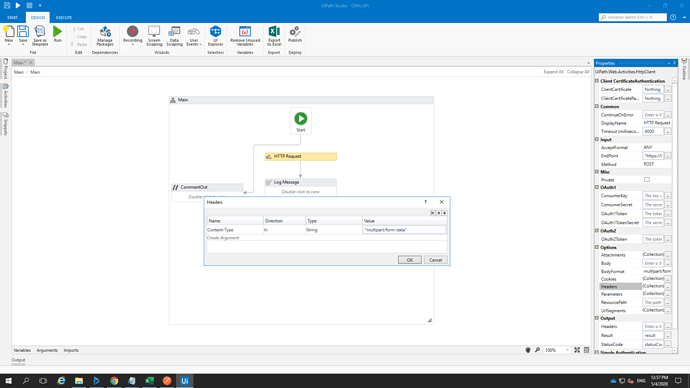

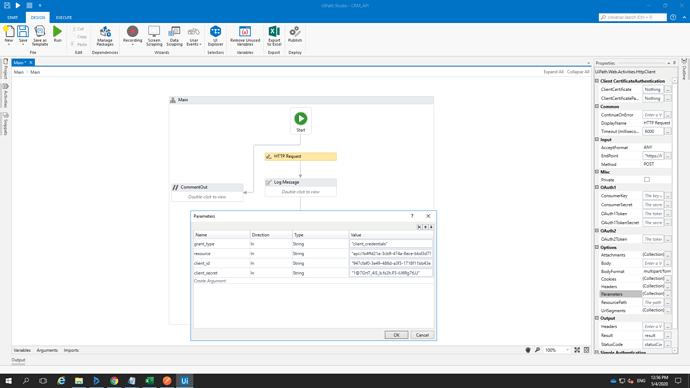

kalyanDev · May 4, 2020, 10:58am

GBK · May 4, 2020, 11:17am

pls check the Input → AcceptFormat should not be Any …
can you check input type in postman ( like json/text/…)

kalyanDev · May 4, 2020, 11:23am

yes i have given accept format as any
in post man Content-Type is multipart/form-data

GBK · May 4, 2020, 2:15pm

@kalyanDev - can you remove these parameters from this section and pass it in body and try…

kalyanDev · May 5, 2020, 4:54am

like as json formate i have to pass ?

GBK · May 5, 2020, 4:56am

pls try passing all the parameters as json string format in body…

kalyanDev · May 5, 2020, 4:57am

okay @GBK i’ll try and get back to you … Thanks for quick replay

kalyanDev · May 5, 2020, 5:01am

Tried but getting same error

The request body must contain the following parameter: ‘grant_type’

hatakora · September 23, 2021, 3:18pm

@kalyanDev @GBK did you guys resolve this? I am running into the same issue. Please assist .

Cristian_Negulescu · September 24, 2021, 5:48am

Hello Hatakora,
Here I have a solution for Form Data:

You have all the code in the description of the movie or here:

github.com

cristinegulescu/startUiPathFromSalesforce/blob/master/FormData.txt

/// Visual Basic and UiPath Code

Dim client As HttpClient = New HttpClient()
client.BaseAddress = New Uri("YOUR URL")
client.DefaultRequestHeaders.Accept.Clear()
client.DefaultRequestHeaders.Accept.Add(New MediaTypeWithQualityHeaderValue("application/vnd.openxmlformats-officedocument.wordprocessingml.document"))
// for BASIC AUTH
Dim byteArray As Byte() = Encoding.ASCII.GetBytes(“username:password”)
client.DefaultRequestHeaders.Authorization = New AuthenticationHeaderValue(“Basic”, Convert.ToBase64String(byteArray))Dim byteArray As Byte() = Encoding.ASCII.GetBytes(“username:password”)
// for OAUTH2
client.DefaultRequestHeaders.Add("authorization", "Bearer YOUR TOKEN")
Dim request As MultipartFormDataContent = New MultipartFormDataContent()
request.Add(New StringContent("Bad"), "tags")
request.Add(New StringContent("true"), "displayreferencetext")
request.Add(New StringContent("0.63"), "similaritythreshold")
request.Add(New StreamContent(File.OpenRead("C:\\8A.docx")), "file", (New FileInfo("C:\\8A.docx").Name))

Dim response As HttpResponseMessage = client.PostAsync("", request).Result
Dim strm As Stream = response.Content.ReadAsStreamAsync.Result
Dim doc As Byte()

This file has been truncated. show original

Thanks,
Cristian

hatakora · September 25, 2021, 12:14am

Hi @Cristian_Negulescu thank you for the response. How do i adjust this to take Cookie value as authentication instead

indrajit.shah · August 26, 2022, 2:04pm

Hi @kalyanDev can you help me how you fixed it?

@Cristian_Negulescu I am trying the code and followed the movie too but how do I add this below as body in the code?

request.Add(New StringContent(“”[{“name”: “A Field”, “values”: [{“value”: “ABC”}]}]“”), “fields”)

It is giving me ')'expected. error

Cristian_Negulescu · August 30, 2022, 11:43am

There You have a JSON. You need to build JSON like in this movie:

and the JSON will be in variable Jobj let’s say and you will call like this:

request.Add(New StringContent(Jobj), “fields”)

Thanks,
Cristian
