Hello,

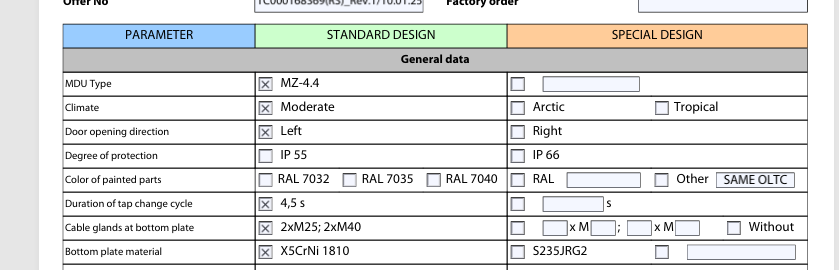

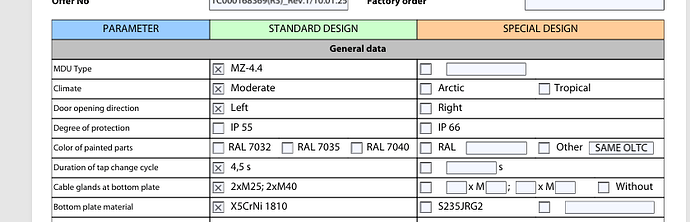

I have PDF that contains multiple checkboxes.
When I use the standard UiPath PDF activities (Read PDF Text, OCR, etc.), the “checked” state of these boxes is not detected.
Could you please advise:
Thank you in advance.
Welcome to the community
for pdf forms you dont have an activity..but without reading from ui we can get data using itext7..here is a example to get all fields and values
cheers
Can you help me connect this package to UiPath?

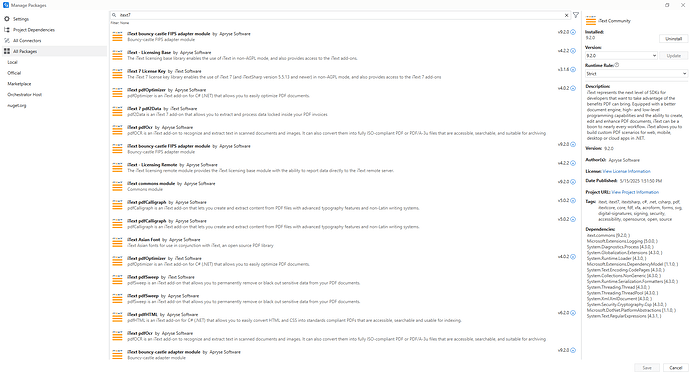

go to manage packages and search for it you should be able to find it..make sure no filters are there
cheers
Which version of itext you have installed?
As Anil mentioned, it should be v7
Can you please show right panel of this screen when you click itextcommunity?
And in the drop downs there, do you not see v 7 or something?

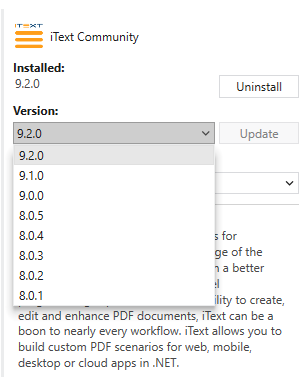

When you click on the version dropdown, is there no else version than 9.2.0?

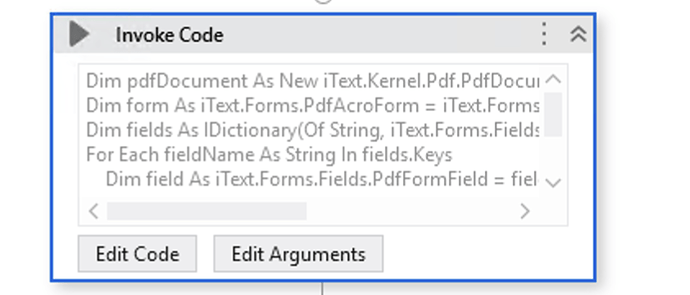

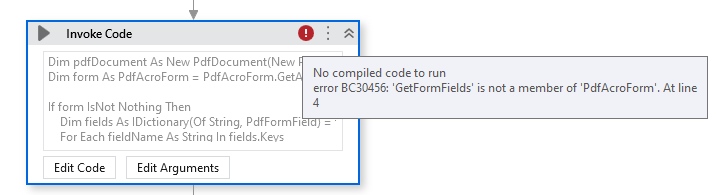

try this modified code
Dim pdfDocument As New iText.Kernel.Pdf.PdfDocument(New iText.Kernel.Pdf.PdfReader("PDFFilePath"))
Dim form As iText.Forms.PdfAcroForm = iText.Forms.PdfAcroForm.GetAcroForm(pdfDocument, True)
Dim fields As IDictionary(Of String, iText.Forms.Fields.PdfFormField) = form.GetAllFormFields()
For Each fieldName As String In fields.Keys
Dim field As iText.Forms.Fields.PdfFormField = fields(fieldName)
Dim value As String = field.GetValueAsString()
Console.WriteLine("Field name: " & fieldName & ", value: " & value)
Next
pdfDocument.Close()
cheers
You should be using Document Understanding with the UiPath Document OCR activity.
Thank you very much:)
This topic was automatically closed 3 days after the last reply. New replies are no longer allowed.
