Retrieving Specific XML Tag

Help
1

I have an XML file that I am currently working on where the total number of records is provided at the end of the file in the following format:

Capture

I am currently following these steps:

  1. Read in XML in Text File activity
  2. Deserialize XML
  3. Get XML Nodes
  4. For Each checking if item.Name.LocalName = “trailer”

Unfortunately this only returns a blank value. Any ideas on how to get that 14 out?

2

@Tal294
Often namespaces, other issues are leading to empty results. We worked heavily on such issues got it more and more under control. So I have following suggestions:

  • do a debug with breakpoints and check what is the result Step 3, verify that “trailer” is accepted as element name/localname. Otherwise printout element names and check out what is expected.
    the 14 should be retrieved from Attribute totalRecords, due trailer is a so called empty element

Other option would be share the xml or demo data xml (but with all same settings e.g namespace definitions) so I can check the particular cases at my IMPs and share some code parts if there are matching to your needs

3

If you only need that from the xml, change your step 2 into a string manipulation like shown here: String.Substring Method (System) | Microsoft Learn

4

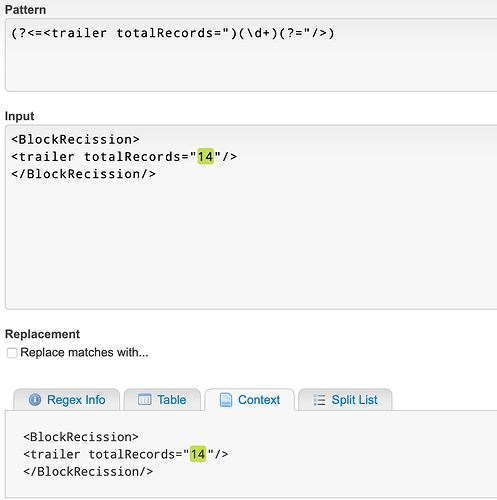

If there is only one occurrence of tag present in your xml file then I recommend to use Regex expression.

Read xml file into a string strXML
resultString = Regex.Match(strXML, strPattern).ToString //parse the string to integer if required

14%20PM
14%20PM1150×1156 64 KB

Regards,
Karthik Byggari

1 Like
5

You need to retrieve the attribute value not the element value (sorry for confusing you :slight_smile:).

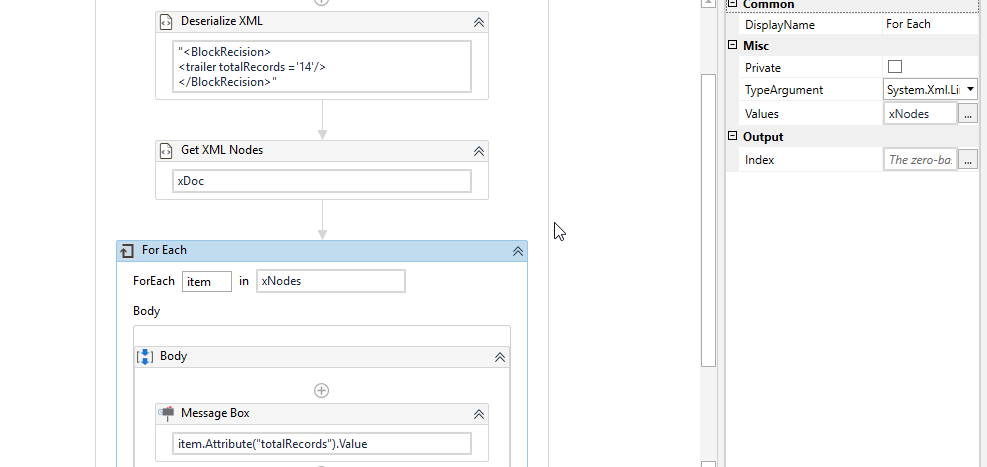

Check this screenshot and make sure you have changed the item type in for each activity to xelement

image987×467 16.5 KB

1 Like
