Need help to extract values from XML response

[divya.x.kuchi (Divya Kuchi)]

Hi,

Hope you are doing well.

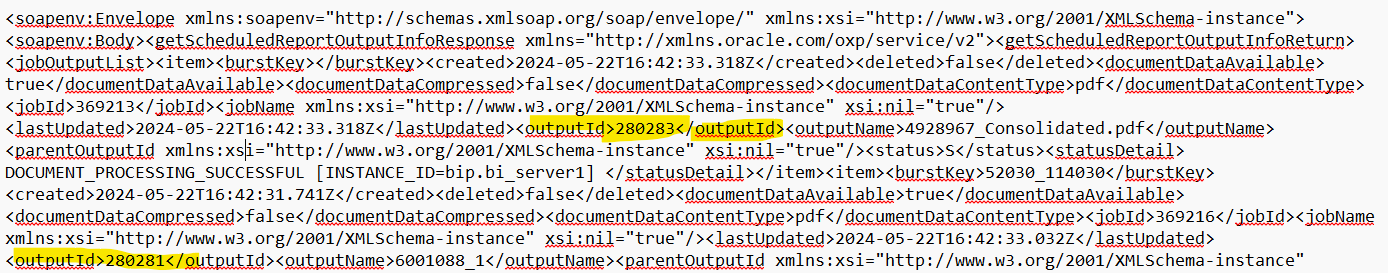

Can anyone help me to extract all repeated OutpuID’s from below XML response

<soapenv:Envelope xmlns:soapenv=“http://schemas.xmlsoap.org/soap/envelope/” xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance”>soapenv:Body2024-05-22T16:42:33.318Zfalsetruefalsepdf3692132024-05-22T16:42:33.318Z2802834928967_Consolidated.pdfS DOCUMENT_PROCESSING_SUCCESSFUL [INSTANCE_ID=bip.bi_server1] 52030_1140302024-05-22T16:42:31.741Zfalsetruefalsepdf3692162024-05-22T16:42:33.032Z2802816001088_1<parentOutputId xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance”

[AJ_Ask]

Hi @divya.x.kuchi

Read your XML file using Read Text File Activity & Give their output to Deserialize XML Activity as input. You will get output from that in this case i have used variable OutXMLDes.

Use this assign & you will have all the output ids in the list format.

(From node In OutXMLDes.Descendants(XName.Get("outputId", "http://xmlns.oracle.com/oxp/service/v2"))
 Select node.Value).ToList()

Hope this helps

For Ref-
XML.zip (3.3 KB)

[ppr (Peter Preuss)]

You will handle XML namespaces as described here

XML Extraction - Handling Namespaces (Tableau, Soap, OASIS types)

Going ahead Serializing the XML - output: xDoc | DataType: XDocument: [grafik] Checking if we have to handle XML namespaces [grafik] We do have: [grafik] Checking for some children: [grafik] Defining Namespace Variable [grafik] In some cases, we can also do: Assign Activity - xnsDefault = xDoc.Root.Name.Namespace Checkin the retrieval [grafik] xDoc.Descendants(xnsDefault + "productVersion") GetDescendants { [<productVersion build="456" xmlns="http://tableau.com/api">123</…

[divya.x.kuchi (Divya Kuchi)]

Thanks for the help!
