Issue with File Upload API Call to Guidewire from UiPath

[SruthiSurendran (Sruthi)]

I’m encountering an issue while attempting to upload a file to Guidewire via an API call from UiPath. Below are the details of the configuration:

File Attachment: Added in the properties as attachments
Metadata (JSON): Added in the properties as body
Bearer Token: Included in the headers

Error Message:
Metadata is not part of the file

Could you please advise on the correct format for the HTTP request to ensure the metadata is properly included?

Note: The same request works successfully in Postman without any issues.

[Anil_G (Anil Gorthi)]

@SruthiSurendran

Did you happen to import the curl?

Also in postman is the metadata given in json format or any other formats?

Cheers

[Ramaseshan_S (Ramaseshan)]

@Anil_G - We are trying to send the request in the postman as below

file: is the actual attachment from the local directory
metadata: is the value extracted as in the below json format

{
“fileName”: “File_Name.eml”,
“claimNumber”: “SYDMLxxxx”,
“description”: “API Testing via postman”,
“gccUserName”: “”,
“contentType”: “Correspondence”,
“exposureNumber”: 1,
“securityType”: “Non_Sensitive”,
“documentStatus”: “Draft”
}

[Ramaseshan_S (Ramaseshan)]

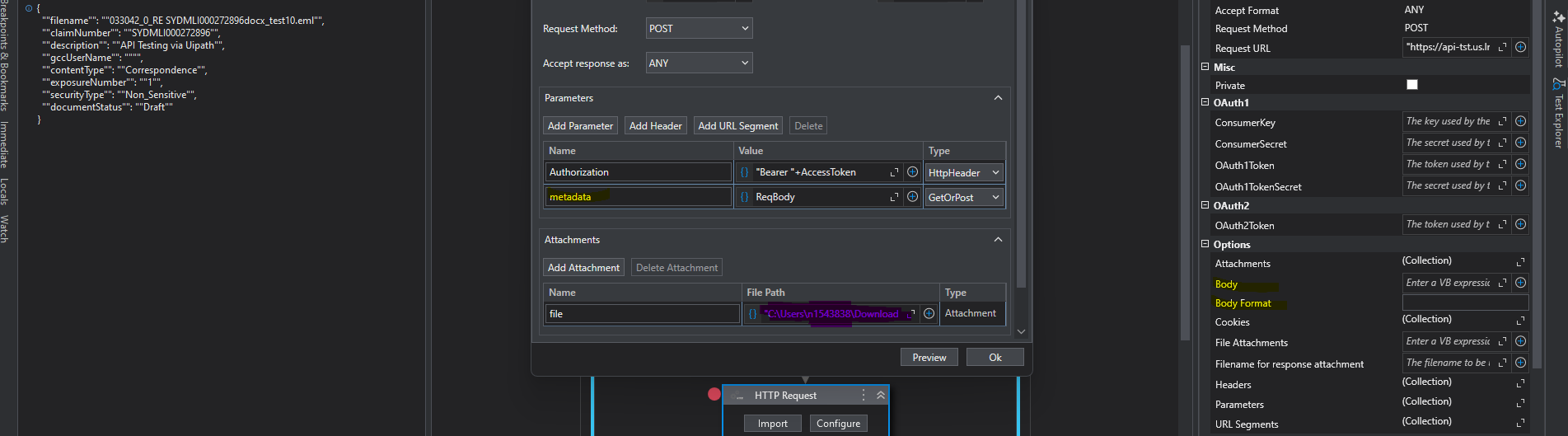

Properties and Output

[Anil_G (Anil Gorthi)]

@Ramaseshan_S

Try adding the metadata in parameters section instead of body and check the same

Cheers

[Ramaseshan_S (Ramaseshan)]

yes i have tried sending the metadata as parameter opposed to body

Error Message is:
“{"timestamp":"2025-06-25T05:55:56.823+00:00","status":415,"error":"Unsupported Media Type","message":"Content-Type ‘application/octet-stream’ is not supported.","path":"/upload-document-service"}”
