Issue with multiple assign activity in latest version

Help Activities
, ,
21

Hi @Jon_Smith @prashant1603765 , i have uninstalled UiPath studio and reinstalled. I still have the same issue.

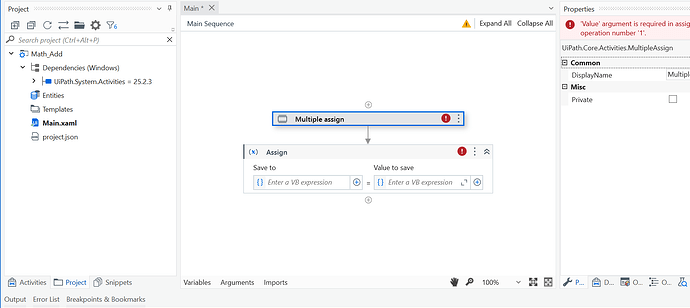

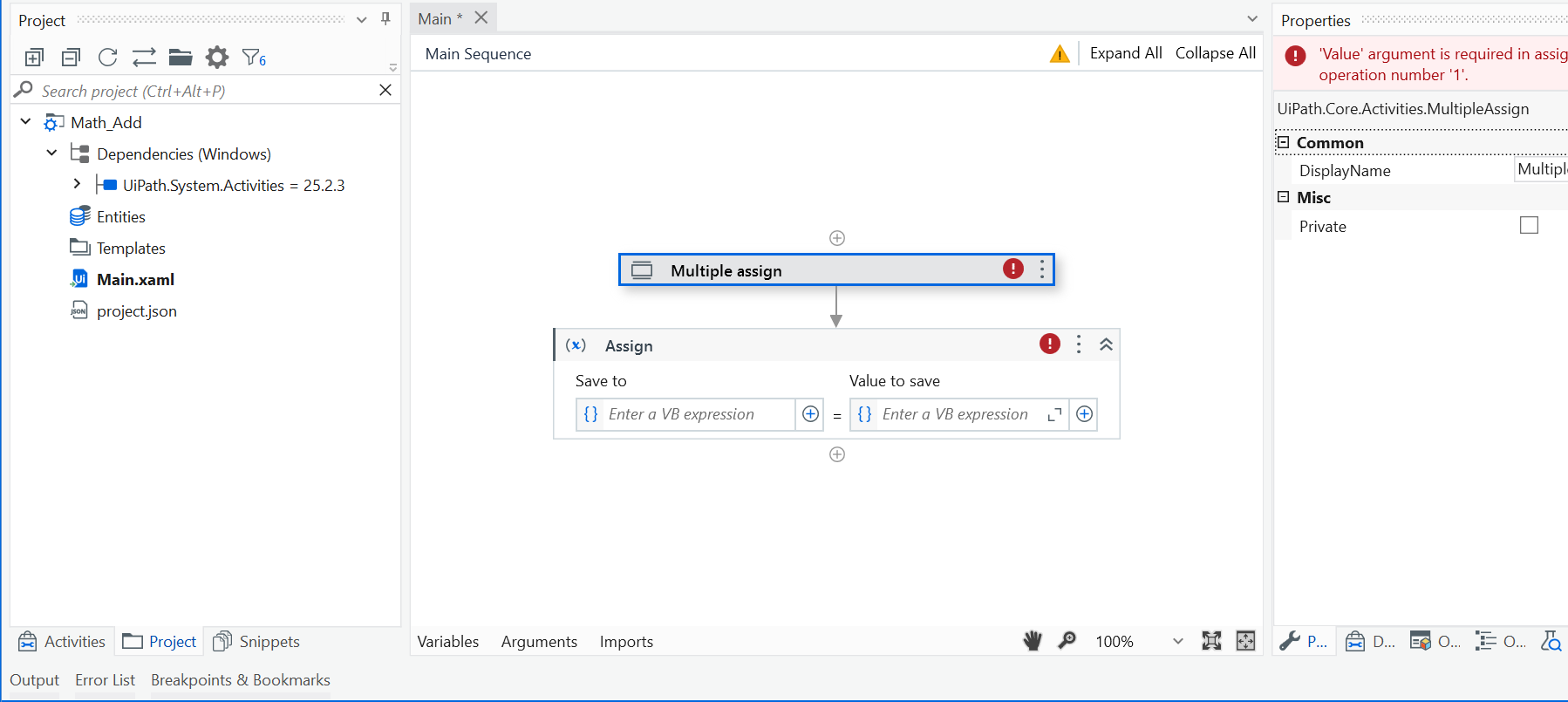

This image shows a UiPath workflow with a "Multiple assign" activity, indicating errors due to missing 'Value' arguments needed for the assignment operation. (Captioned by AI)
This image shows a UiPath workflow with a "Multiple assign" activity, indicating errors due to missing 'Value' arguments needed for the assignment operation. (Captioned by AI)1798×805 47.8 KB

UiPath Version :

Screenshot of UiPath software showing version 2025.0.161 with an Enterprise Trial License for per-user installation. (Captioned by AI)
Screenshot of UiPath software showing version 2025.0.161 with an Enterprise Trial License for per-user installation. (Captioned by AI)589×436 3.7 KB

22

@shivappa.katti1
Are you using windows 11 or other Operating System ?

23

current OS is windows 10

24

I’m really at a loss here, I have the same Studio version and it works.

Can you expand the System Activities dependency to make sure all the sub dependencies are loaded. It looks like they are, but I am out of ideas at this point.

25

Hi @loginerror

We tried to resolve but seems strange issue . Could you please assist here.
Thanks

Happy Automation with UiPath

26

Hi @shivappa.katti1

Could you please go to Open Logs:

The image shows the debug tab of UiPath Studio, highlighting the "Open Logs" option in the toolbar. (Captioned by AI)
The image shows the debug tab of UiPath Studio, highlighting the "Open Logs" option in the toolbar. (Captioned by AI)1049×202 17.5 KB

And attach the latest Studio project logs?

There might be something in there that could shine some light on this strange issue.

27

Hi @loginerror

PFA the attached log file.
Logs.zip (13.6 KB)

Thanks
Shiva

28

@shivappa.katti1
I recently faced the same issue with Try catch activity, I was unable to open the activities. After following the below steps, I was able to.

  1. installed UiPath.System.Activities=25.2.3 (Which was not installed initially)
  2. Removed the project from studio/folder
  3. restarted UiPath studio
  4. Again unzipped the project from the source
  5. Reopened the project again from the studio, and was able to see all the variables and activities under that.
    A few others had already suggested installing version 25.2.3 in this forum, but I organized and followed the sequence myself.

Again If the problem persists, additional troubleshooting steps like clearing the NuGet cache or updating/reinstalled UiPath Studio to the latest version may be necessary.

29

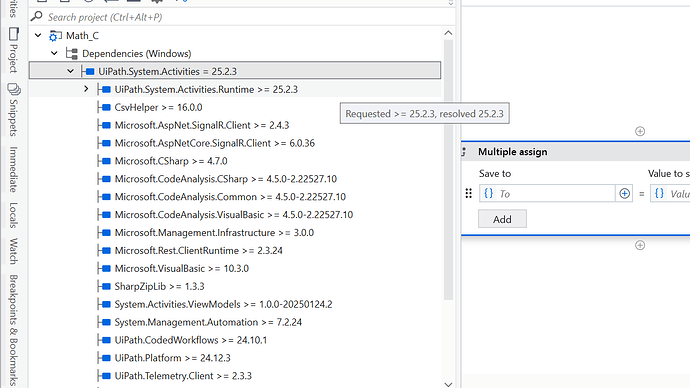

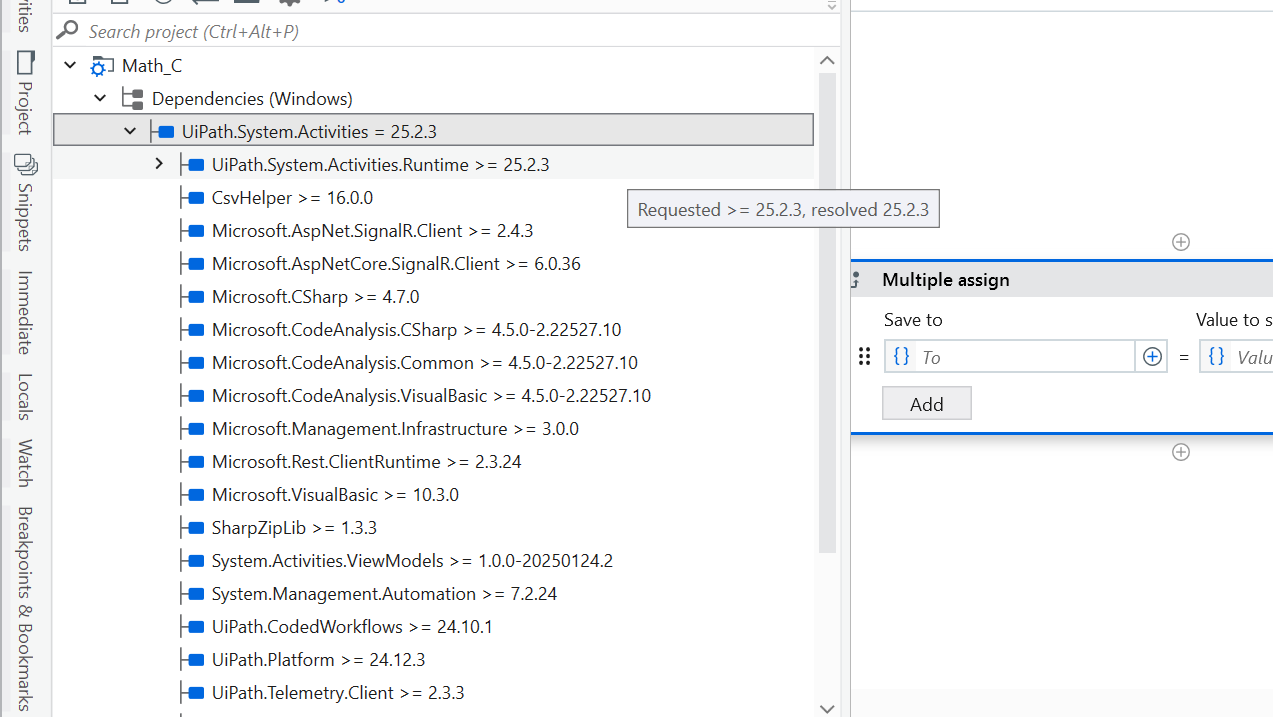

image1273×717 45.7 KB

can you expand this package?

31

Hi all,

I am able to fix the issue, after reinstalling UiPath completely from the beginning serveal times. Now i can able to see all the activities correctly.

Thanks everyone for look arounds.

Best
Shiva
