How to validate the time value in input dialog

Help StudioX
#1

Hi, how to validate the time value in the input dialog?

For example, if the user key in the time value as 0800 instead of 8:00 am, then the robot will send a message box to the user to re-enter the time value in the required format.

Thank you.

#2

Hi @Kun_Seng_Wong

Welcome to forum

To do this

U can try to match the input value with regex pattern [0-9]+:[0-9]+ , if the output matches activitiy contains a value then added data is in required format otherwise input added entered is in required format.

Regards

Nived N :robot:

Happy Automation :relaxed::relaxed::relaxed:

#3

@Kun_Seng_Wong - You expecting user to enter 8:00 am or 08:00 am 8:00am or 08:00am??

#4

Hi @prasath17

The format is 08:00am .

#5

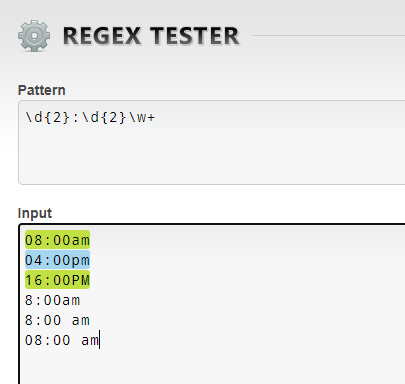

Thanks…@Kun_Seng_Wong - As per the format shared above , I have come up with the below regex…you can see if the user not entered two digits before : or if there is a space before ‘am’ then the regex will not match…
