DU + Community Edition: Can’t Locate ML Extractor Endpoint – Help Appreciated!

Help Document Understanding
1

Description

I’m using the Community Edition of Studio and have completed Document Understanding training on OC (UiPath Orchestrator). I’ve also published the trained model. In the Data Extraction Scope, I need to configure the Machine Learning Extractor. I’d like to know where I can find the Endpoint for this?

Link

Date

2025-04-18

Related UiPath products

Document Understanding

2

@Stitch

is it a modern or classic project that you created

cheers

3

I think it is modern project.

4

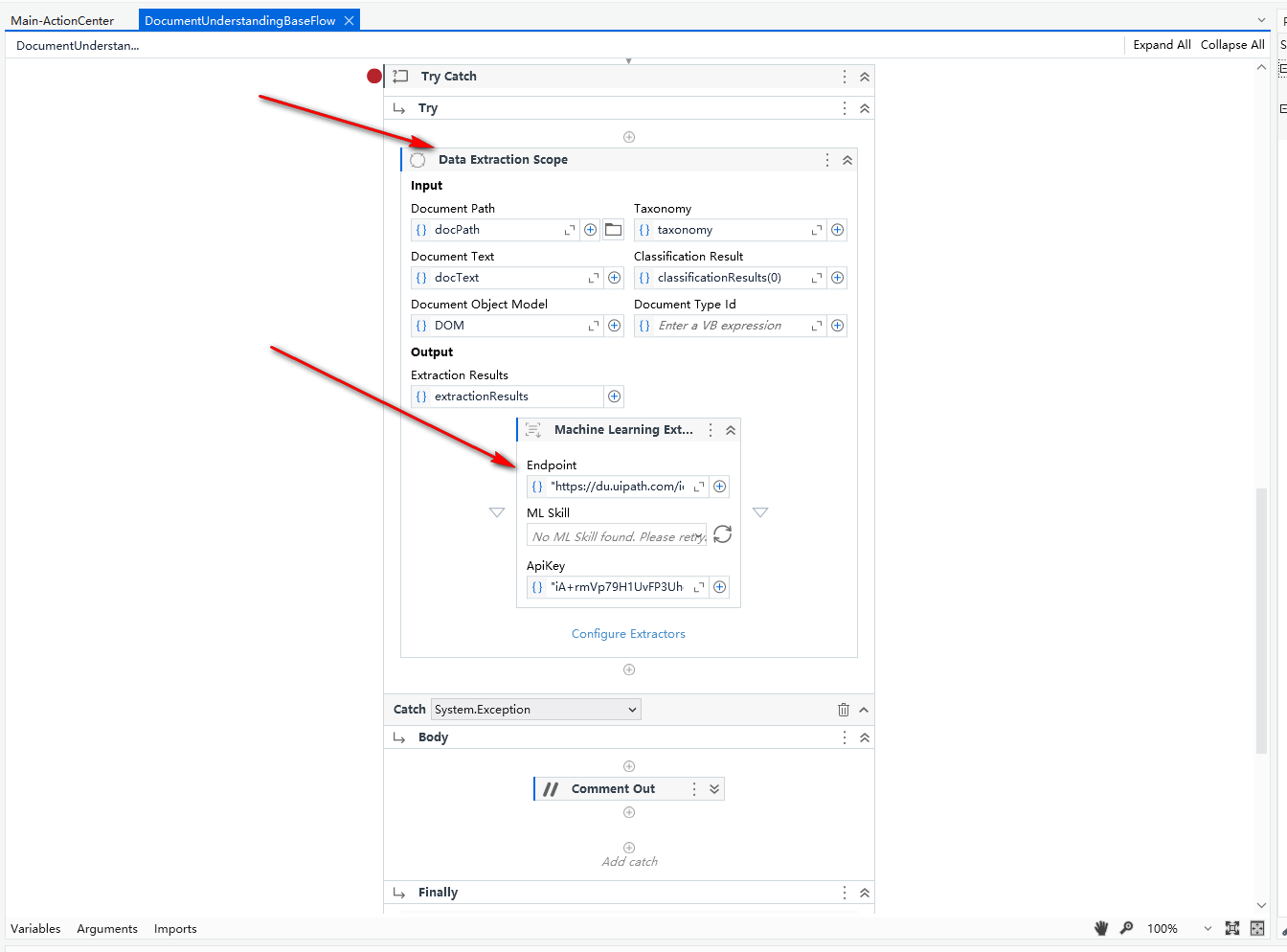

A user interface screenshot of the Document Understanding process in UiPath, highlighting the Data Extraction Scope and Machine Learning Extractor configuration. (由 AI 生成标题)
A user interface screenshot of the Document Understanding process in UiPath, highlighting the Data Extraction Scope and Machine Learning Extractor configuration. (由 AI 生成标题)1344×994 49.4 KB

I would like to know how to construct this endpoint link.

5

@Stitch

for this you need to create model in ai center…

as mentioned by you as it is modern you need to use extract document data activity

cheers

6

Hi

Hi:

thanks for your response.

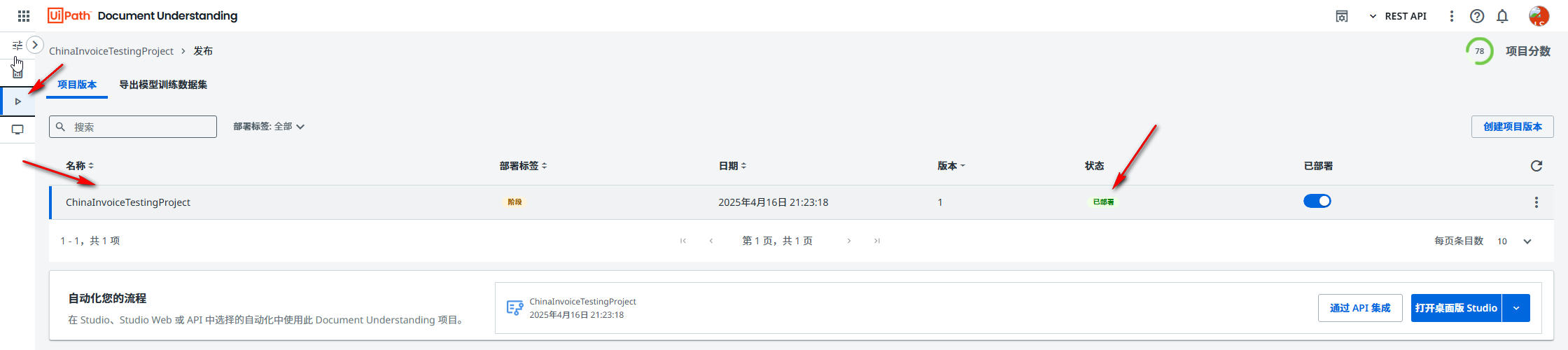

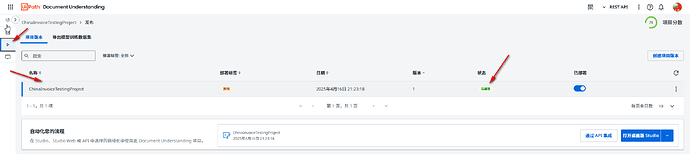

created model and published model I all done.

I know how to extract data from UiPath public endpoint. But I don’t know how to use my endpoint. (I mean this training model from my OC)

I need to know how my endpoint should be spelled or how I can find it.

I don’t know whether community edition lincese has authorization for it.

thank you so much.

image.png2240×500 60.5 KB

Stitch

在 2025-04-20 14:49:33，“Anil Gorthi via UiPath Community Forum” notifications@uipath.discoursemail.com 写道：

7

@Stitch

may be let me make it clear

as mentioned already as the du project is selected as modern you need to use extract document data

Example:

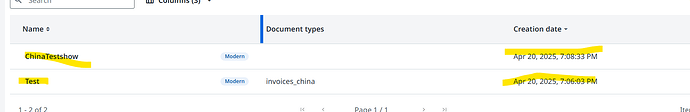

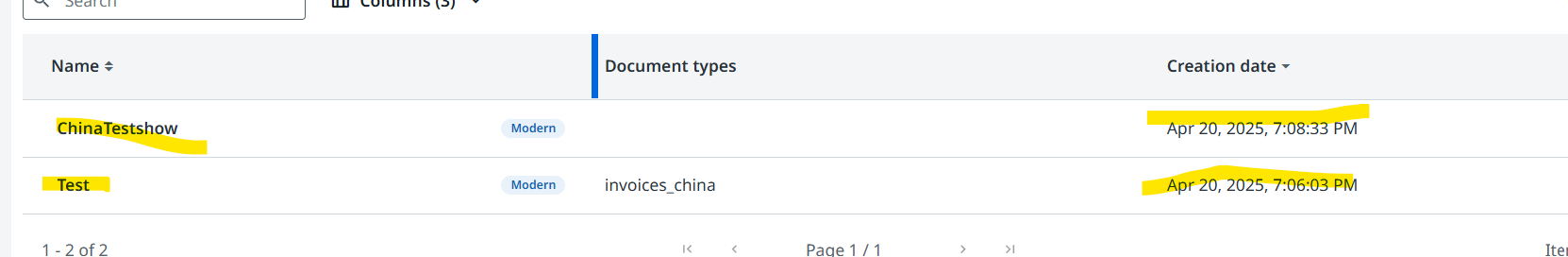

A table displays two items named "ChinaTestshow" and "Test", both with the document type "Modern" and creation dates of April 20, 2025, at 7:08:33 PM and 7:06:03 PM respectively. (Captioned by AI)
A table displays two items named "ChinaTestshow" and "Test", both with the document type "Modern" and creation dates of April 20, 2025, at 7:08:33 PM and 7:06:03 PM respectively. (Captioned by AI)1662×272 20.7 KB

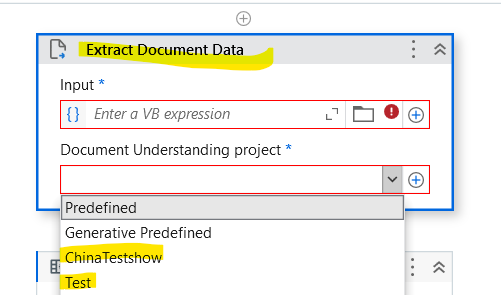

A software interface window titled "Extract Document Data" with input fields and a dropdown menu displaying project options like "Predefined," "Generative Predefined," "ChinaTestshow," and "Test." (Captioned by AI)
A software interface window titled "Extract Document Data" with input fields and a dropdown menu displaying project options like "Predefined," "Generative Predefined," "ChinaTestshow," and "Test." (Captioned by AI)501×295 12.3 KB

What you are using is for classic projects where you would get api from ai center

in classic ai center this is how you would get them

The image shows the user interface of UiPath AI Center, detailing the status and configuration of an image classification machine learning package, including API key, URL, input type, and descriptions. (Captioned by AI)
The image shows the user interface of UiPath AI Center, detailing the status and configuration of an image classification machine learning package, including API key, URL, input type, and descriptions. (Captioned by AI)1898×930 97.7 KB

Hope this is clear now

cheers

8

Hi:

Hi:

thanks for your screenshot. I understand what your mean.

I think I don’t have AI center, that is the problem.

do i need to take application for AI center?

image.png1908×1243 191 KB

Stitch

在 2025-04-20 21:50:51，“Anil Gorthi via UiPath Community Forum” notifications@uipath.discoursemail.com 写道：

9

@Stitch

Ai center is not available in community edition

You need an eterprise or enterprise trail license for the same

Else use extract document data as you created a modern project

Also the new recommended way is to go with modern and not ai center so its better to learn the bew activities

Cheers

10

Hi

“the new recommended way is to go with modern and not ai center so its better to learn the bew activities” how can I do it? do you know any guide line for me reference?

I don’t have any enterprise liencese, I just want to study it. thanks so much.

在 2025-04-21 12:27:19，“Anil Gorthi via UiPath Community Forum” notifications@uipath.discoursemail.com 写道：

11

@Stitch

I gave the screenshot of the activity you need to use as well

cheers

12

your activity works to me. but it has a input variables. how can I get this variables? :sweat_smile:

An interface displaying a workflow for extracting document data with highlighted variables in an automation software. (由 AI 生成标题)
An interface displaying a workflow for extracting document data with highlighted variables in an automation software. (由 AI 生成标题)1879×1059 82.8 KB

13

@Stitch

that is the input file

either select using the folder icon on the activity

or use localresource.frompath(filepath)

cheers

14

very thanks.
LocalResource.FromPath( in_docPath) can do it.
in_docPath is the document full path.

this activity is easy to us. and taxonomy cannot be used.

1 Like
15

@Stitch

glad it helped

Happy Automation

1 Like
16
