Deserializing multiple conditional dropdowns

Help Forms
1

Hello guys,

I have created a form with a parent dropdown (Category), and based on the value selected in this one, it will display a 2nd dropdown (Subcategory). This form has a total of 10 conditional dropdowns.

I would like to deserialize the JSON 2nd dropdown value, selected by the user, and store it into a value type: Dictionary<String,String> for later use. For the Write Line activity, I am using the following text: SubcategoryOutput(“subcategory1”). Then I created another Deserialize JSON + Write Line activities for the “subcategory2”, and so on until I cover all of them.

My issue is that during this process, if the first value in the workflow is anything rather than the user selected will display “Write Line: The given key was not present in the dictionary.” which will stop the workflow.

Is there a way of bypassing these stop codes?
This is my first experience with UiPath, and my first post here, have mercy. :innocent:

Thank you for your support!![Screenshot 2021-11-13 153602|354x500]

Screenshot 2021-11-13 151645
Screenshot 2021-11-13 1516451121×352 26 KB

1 Like
2

Hey @mcernat

There is small thing you may be missing

Could you please show the json string which you are trying to serialize…

Thanks
#nK

1 Like
4

Hi @Nithinkrishna!

Thank you for your swift reply!

This is for the Subcategory1

{
“label”: “Subcategory1”,
“tableView”: true,
“data”: {
“values”: [
{
“label”: “Five9”,
“value”: “five9”
}
]
},
“validate”: {
“onlyAvailableItems”: false
},
“key”: “subcategory1”,
“conditional”: {
“show”: true,
“when”: “category”,
“eq”: “subcategory1”
},
“type”: “select”,
“indexeddb”: {
“filter”: {}
},
“input”: true
}

And this one for the Subcategory2

{
“label”: “Subcategory2”,
“tableView”: true,
“data”: {
“values”: [
{
“label”: “AD”,
“value”: “ad”
}
]
},
“validate”: {
“onlyAvailableItems”: false
},
“key”: “subcategory2”,
“conditional”: {
“show”: true,
“when”: “category”,
“eq”: “subcategory2”
},
“type”: “select”,
“indexeddb”: {
“filter”: {}
},
“input”: true
}

Kindly let me know if anything else is needed, or if I provided the wrong details!
Thank you again!

1 Like
5

From this json you are trying to get values property ?

#nK

6

That is correct!
I am trying to get the values property based on the conditional dropdown that the user is selecting. In our scenario, subcategory2, that has the value “ad”.
The workflow won’t bypass the subcategory1 deserialization. This is where I am stuck, if he selects subcategory1 then the workflow will get stuck at subcategory2 deserialization.

I will seriously consider learning a programming language after this case. :slight_smile:

Screenshot 2021-11-14 083631
Screenshot 2021-11-14 0836311215×809 39.1 KB

1 Like
7

Hey @mcernat

Kindly try the below, please.

(SubOutput("values")(0))("value")

Add .ToString if required

This should help, please let me know if you face any issues.

Thanks
#nK

8

The Deserialize JSON activity TypeArgument is: System.Collections.Generic.Dictionary<System.String, System.String>
Activity type:Deserialize JSON
Output > JsonObject > SubOutput

SubOutput variable type:System.Collections.Generic.Dictionary<System.String, System.String>

I tested it with .ToString or without it, the same result.

Check the screenshot for the new error message.
I am 100% that I am doing something wrong, or there is a misplaced configuration somewhere, and I can’t figure it out. :frowning:

Thank you!

Screenshot 2021-11-14 122310
Screenshot 2021-11-14 1223101522×378 36.2 KB

1 Like
9

Don’t worry this will be resolved. Let’s work together :slight_smile:

Ok now it’s time to only print SubOutput("values")

Check this first please

Thanks
#nK

1 Like
10

Hi @Nithinkrishna

Unfortunately, the same error message as before.

Screenshot 2021-11-14 150412
Screenshot 2021-11-14 1504121212×633 38.2 KB

Thank you!

1 Like
11

Could you please give me the userinput json variable string value in full which you are trying to deserialize. Just print it and send it to me please.

12

This is for the parent dropdown (called category)

{
“label”: “Category”,
“tableView”: true,
“data”: {
“values”: [
{
“label”: “Subcategory1”,
“value”: “subcategory1”
},
{
“label”: “Subcategory2”,
“value”: “subcategory2”
}
],
“json”: “”,
“url”: “”,
“resource”: “”,
“custom”: “”
},
“validate”: {
“onlyAvailableItems”: false,
“required”: false,
“custom”: “”,
“customPrivate”: false,
“strictDateValidation”: false,
“multiple”: false,
“unique”: false
},
“key”: “category”,
“type”: “select”,
“indexeddb”: {
“filter”: {}
},
“input”: true,
“placeholder”: “”,
“prefix”: “”,
“customClass”: “”,
“suffix”: “”,
“multiple”: false,
“defaultValue”: null,
“protected”: false,
“unique”: false,
“persistent”: true,
“hidden”: false,
“clearOnHide”: true,
“refreshOn”: “”,
“redrawOn”: “”,
“modalEdit”: false,
“dataGridLabel”: false,
“labelPosition”: “top”,
“description”: “”,
“errorLabel”: “”,
“tooltip”: “”,
“hideLabel”: false,
“tabindex”: “”,
“disabled”: false,
“autofocus”: false,
“dbIndex”: false,
“customDefaultValue”: “”,
“calculateValue”: “”,
“calculateServer”: false,
“widget”: null,
“attributes”: {},
“validateOn”: “change”,
“conditional”: {
“show”: null,
“when”: null,
“eq”: “”
},
“overlay”: {
“style”: “”,
“left”: “”,
“top”: “”,
“width”: “”,
“height”: “”
},
“allowCalculateOverride”: false,
“encrypted”: false,
“showCharCount”: false,
“showWordCount”: false,
“properties”: {},
“allowMultipleMasks”: false,
“idPath”: “id”,
“clearOnRefresh”: false,
“limit”: 100,
“dataSrc”: “values”,
“valueProperty”: “”,
“lazyLoad”: true,
“filter”: “”,
“searchEnabled”: true,
“searchField”: “”,
“minSearch”: 0,
“readOnlyValue”: false,
“authenticate”: false,
“ignoreCache”: false,
“template”: “{{ item.label }}”,
“selectFields”: “”,
“searchThreshold”: 0.3,
“uniqueOptions”: false,
“fuseOptions”: {
“include”: “score”,
“threshold”: 0.3
},
“customOptions”: {},
“useExactSearch”: false,
“id”: “e9i6q6”,
“keyModified”: true
}

This is for the conditional dropdown 1 (called subcategory1)

{
“label”: “Subcategory1”,
“tableView”: true,
“data”: {
“values”: [
{
“label”: “Five9”,
“value”: “five9”
}
],
“json”: “”,
“url”: “”,
“resource”: “”,
“custom”: “”
},
“validate”: {
“onlyAvailableItems”: false,
“required”: false,
“custom”: “”,
“customPrivate”: false,
“strictDateValidation”: false,
“multiple”: false,
“unique”: false
},
“key”: “subcategory1”,
“conditional”: {
“show”: true,
“when”: “category”,
“eq”: “subcategory1”
},
“type”: “select”,
“indexeddb”: {
“filter”: {}
},
“input”: true,
“placeholder”: “”,
“prefix”: “”,
“customClass”: “”,
“suffix”: “”,
“multiple”: false,
“defaultValue”: null,
“protected”: false,
“unique”: false,
“persistent”: true,
“hidden”: false,
“clearOnHide”: true,
“refreshOn”: “”,
“redrawOn”: “”,
“modalEdit”: false,
“dataGridLabel”: false,
“labelPosition”: “top”,
“description”: “”,
“errorLabel”: “”,
“tooltip”: “”,
“hideLabel”: false,
“tabindex”: “”,
“disabled”: false,
“autofocus”: false,
“dbIndex”: false,
“customDefaultValue”: “”,
“calculateValue”: “”,
“calculateServer”: false,
“widget”: null,
“attributes”: {},
“validateOn”: “change”,
“overlay”: {
“style”: “”,
“left”: “”,
“top”: “”,
“width”: “”,
“height”: “”
},
“allowCalculateOverride”: false,
“encrypted”: false,
“showCharCount”: false,
“showWordCount”: false,
“properties”: {},
“allowMultipleMasks”: false,
“idPath”: “id”,
“clearOnRefresh”: false,
“limit”: 100,
“dataSrc”: “values”,
“valueProperty”: “”,
“lazyLoad”: true,
“filter”: “”,
“searchEnabled”: true,
“searchField”: “”,
“minSearch”: 0,
“readOnlyValue”: false,
“authenticate”: false,
“ignoreCache”: false,
“template”: “{{ item.label }}”,
“selectFields”: “”,
“searchThreshold”: 0.3,
“uniqueOptions”: false,
“fuseOptions”: {
“include”: “score”,
“threshold”: 0.3
},
“customOptions”: {},
“useExactSearch”: false,
“id”: “eukrksmh”,
“keyModified”: true
}

This is for the conditional dropdown 2 (called subcategory2)

{
“label”: “Subcategory2”,
“tableView”: true,
“data”: {
“values”: [
{
“label”: “AD”,
“value”: “ad”
}
],
“json”: “”,
“url”: “”,
“resource”: “”,
“custom”: “”
},
“validate”: {
“onlyAvailableItems”: false,
“required”: false,
“custom”: “”,
“customPrivate”: false,
“strictDateValidation”: false,
“multiple”: false,
“unique”: false
},
“key”: “subcategory2”,
“conditional”: {
“show”: true,
“when”: “category”,
“eq”: “subcategory2”
},
“type”: “select”,
“indexeddb”: {
“filter”: {}
},
“input”: true,
“placeholder”: “”,
“prefix”: “”,
“customClass”: “”,
“suffix”: “”,
“multiple”: false,
“defaultValue”: null,
“protected”: false,
“unique”: false,
“persistent”: true,
“hidden”: false,
“clearOnHide”: true,
“refreshOn”: “”,
“redrawOn”: “”,
“modalEdit”: false,
“dataGridLabel”: false,
“labelPosition”: “top”,
“description”: “”,
“errorLabel”: “”,
“tooltip”: “”,
“hideLabel”: false,
“tabindex”: “”,
“disabled”: false,
“autofocus”: false,
“dbIndex”: false,
“customDefaultValue”: “”,
“calculateValue”: “”,
“calculateServer”: false,
“widget”: null,
“attributes”: {},
“validateOn”: “change”,
“overlay”: {
“style”: “”,
“left”: “”,
“top”: “”,
“width”: “”,
“height”: “”
},
“allowCalculateOverride”: false,
“encrypted”: false,
“showCharCount”: false,
“showWordCount”: false,
“properties”: {},
“allowMultipleMasks”: false,
“idPath”: “id”,
“clearOnRefresh”: false,
“limit”: 100,
“dataSrc”: “values”,
“valueProperty”: “”,
“lazyLoad”: true,
“filter”: “”,
“searchEnabled”: true,
“searchField”: “”,
“minSearch”: 0,
“readOnlyValue”: false,
“authenticate”: false,
“ignoreCache”: false,
“template”: “{{ item.label }}”,
“selectFields”: “”,
“searchThreshold”: 0.3,
“uniqueOptions”: false,
“fuseOptions”: {
“include”: “score”,
“threshold”: 0.3
},
“customOptions”: {},
“useExactSearch”: false,
“id”: “eouq0a”,
“keyModified”: true
}

Big thanks!

1 Like
13

I dont think you will get this json outside your form right ?

This is the component json present inside formd design?

If possible, please attach the zip file of the process.

14

Hello @Nithinkrishna ,

Correct, that was the JSON present inside the form designer.
This is what I managed to extract after changing the Deserialize JSON activity TypeArgument to Newtonsoft.Json.Linq.JObject, and the Write Line variable type to JObject ,and Text to SubOutput.ToString.
Processing: output.txt…
Screenshot 2021-11-14 171225

Is there a way of storing these responses for the tags (“name”,“company”,“category”,“subcategory2”) to use them later into Type Into activities? I must transfer them to a web browser.

Since I am a new member of this community, it won’t allow me to upload the entire process. Will the Main.XAML file suffice?

I am sorry for the headaches, as I know that I am not that technical at UiPath, and I hope that I will get better with time. :stuck_out_tongue:

2 Likes
15

Don’t worry. It’s all learnings :slight_smile:

Ready to help anytime and any number of times.

Now after deserialization just access subOutput("name").ToString and similar to that all your keys :slight_smile:

This should give you the output.

Try and let know.

Thanks
#nK

1 Like
16

Hello again @Nithinkrishna !

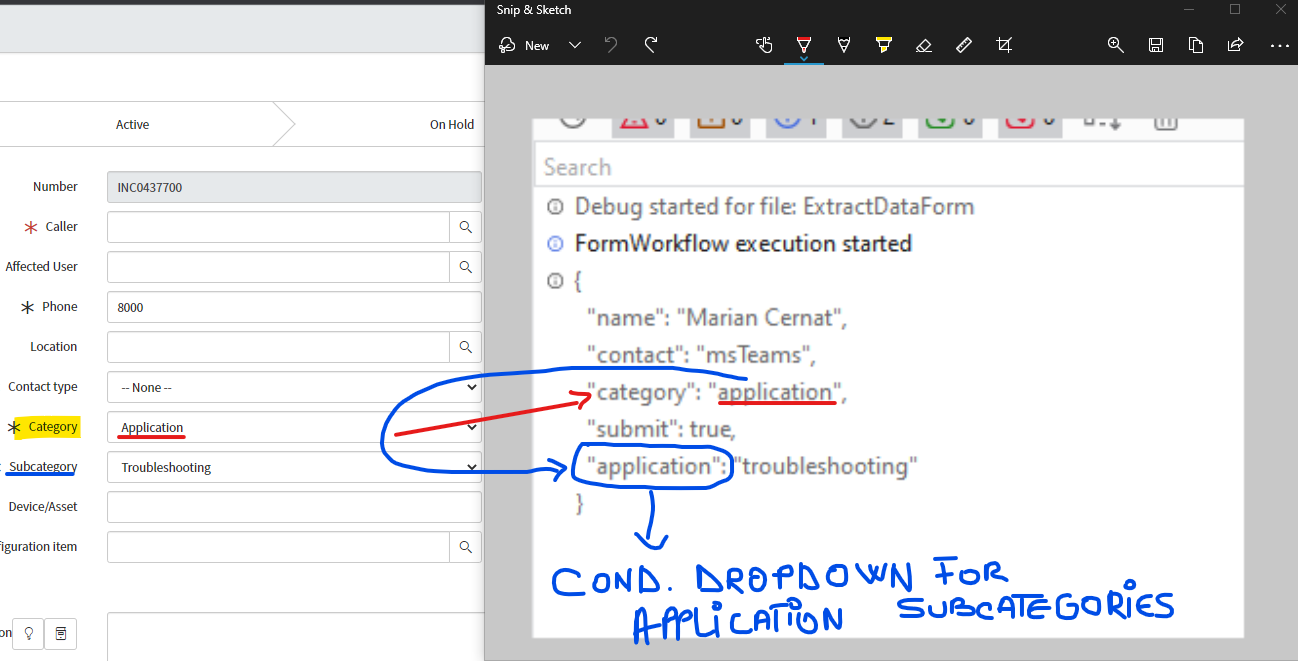

VariableName(“value”) will work for Forms Text Fields and Drop-Down Lists, but sadly, it won’t work for conditional Drop-Down Lists. If the Field Key > Property Name could be the same for every conditional Drop-Down List, then this wouldn’t be an issue anymore. Every conditional Drop-Down List has a different Property Name (“account”,“application”,“cloud”,“database” and so on).

This is where the issue occurs. If the user selects the Application category, a hidden conditional field is revealed to allow him to select a Subcategory for the Application category (Troubleshooting). At this phase, if the first Write Line activity in the workflow is ValueName(“account”), the workflow will stop with the previously provided error message:
Write Line: The given key was not present in the dictionary.

The Subcategory field key/property name (in blue circle) will change from case to case, based on what the user will select in the Category field, and I don’t know how to store it, since it is not the same field key with every case.

Screenshot 2021-11-15 004212
Screenshot 2021-11-15 0042121298×661 116 KB

Thank you!

1 Like
17

Sorry @mcernat for delayed response.

Just try this please…

subOutput(subOutput("category").ToString).ToString

Thanks
#nK

1 Like
18

Hi again my friend @Nithinkrishna!

It is working!!! You are the best :robot:!!!

One last question and we can close this topic. How can I transfer the result form subOutput(subOutput(“category”).ToString).ToString to a new variable, since I already have the subOutput variable created.
I need to use the result from subOutput(subOutput(“category”).ToString).ToString in a Type Into activity.

When using subOutput(subOutput(“category”).ToString).ToString in a Type Into activiy, it won’t input anything in the browser UI, even when the Deserialization and User Browser activities are part of the same sequence.

Thank you very much!!!

1 Like
19

Actually it should work directly in TypeInto if all variables are in scope

If not you can just assign it to a new string variable using assign activity and pass it to TypeInto

Both ways should work :innocent:

Thank you
#nK

1 Like
20

Hi @Nithinkrishna !

Thank you very much for your help on this problem.
I have created a new variable where I have stored the value from the conditional dropdown CategoryOutput(CategoryOutput(“category”).ToString).ToString
The new variable looks like this
SubcategoryOutput(CategoryOutput(“category”).ToString).ToString

One quick note, I have no explanation for it, but to make it work, I had to clone the first Type Into activity. Only in this way, it will type the value into the UI element in the browser. It doesn’t matter if I will disable one of them, in which order, or if I delete them both to create a new one from scratch. It won’t work.
I tried adding a delay between activities, adding extra anchors and other combinations to no avail.

Screenshot 2021-11-18 223414
Screenshot 2021-11-18 2234141075×715 34.5 KB

Thank you very much for your help as you’ve been very kind!

I hope that whenever you need some help, someone like you will do the same for you as you did for me.

Peace to you my friend, and for your loved ones.

1 Like
21

Thanks @mcernat It mean a lot

Hope you enjoyed it. Keep enjoying.

Anytime
#nK

1 Like
